Steam/Air Atomizer 24-AG with adaptor 24-R/disc 24-AS

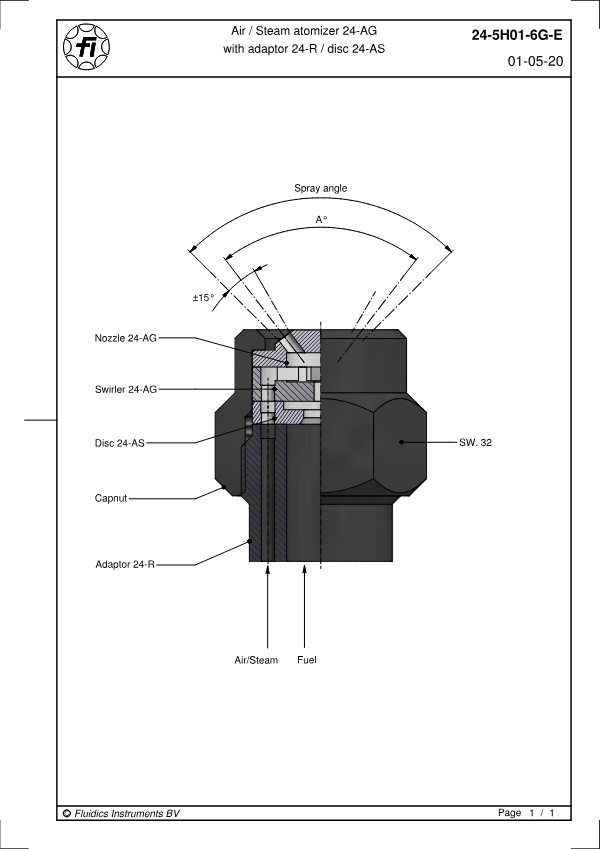

Dimension drawing showing the principal and connection dimensions for type 24 for disc atomizers. Filed under Type 24. Document number 24-5H01-6G-E. PDF document in English.

Til: EN · English content

PDF yuklab olish Narx soʻrashHujjat raqami 24-5H01-6G-E

Koʻrib chiqish

PDF yuklab olish Koʻrib chiqish

Steam/Air Atomizer 24-AG with adaptor 24-R/disc 24-AS

Ushbu hujjatga havola
Hujjat raqami	24-5H01-6G-E
Til	EN
Tur boʻyicha filtrlash	Chizma
Sahifalar	1
Fayl hajmi	144 KB
