Return disc atomizer 40 with needle Central bore for return

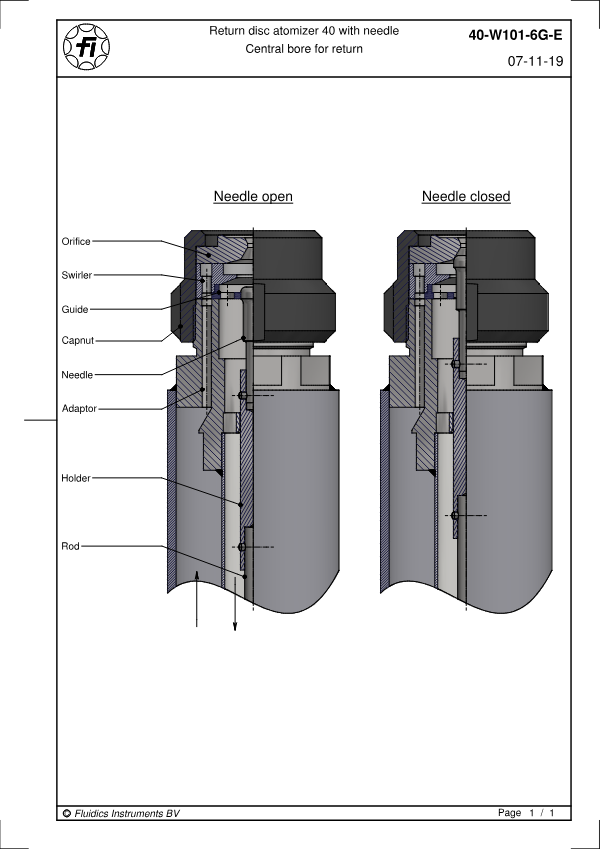

Dimension drawing showing the principal and connection dimensions for type 40 for disc atomizers. Filed under Type 40. Document number 40-W101-6G-E. PDF document in English.

Til: EN · English content

PDF yuklab olish Narx soʻrashHujjat raqami 40-W101-6G-E

Koʻrib chiqish

PDF yuklab olish Koʻrib chiqish

Return disc atomizer 40 with needle Central bore for return

Ushbu hujjatga havola
Hujjat raqami	40-W101-6G-E
Til	EN
Tur boʻyicha filtrlash	Chizma
Sahifalar	1
Fayl hajmi	380 KB
