Hujjat tili: EN Chizma

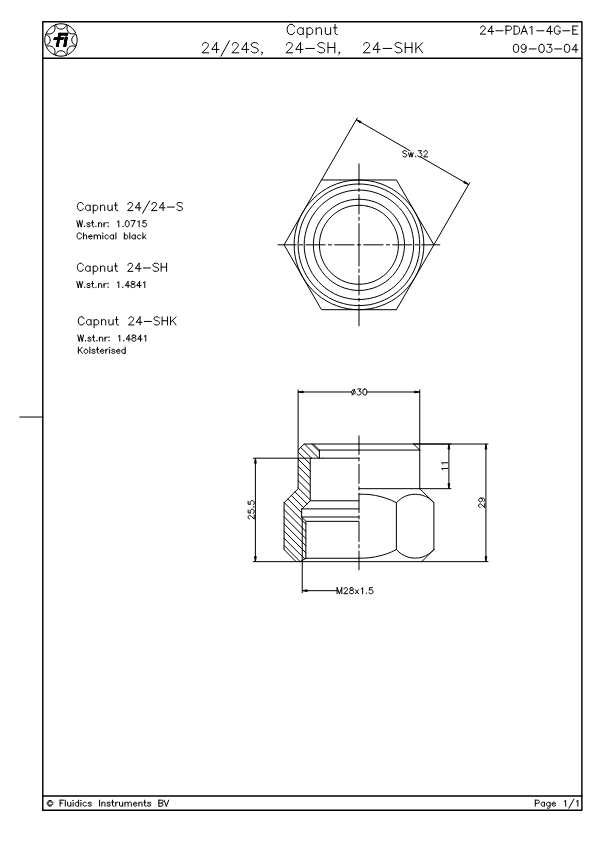

Capnut 24/24-S, 24-SH, 24-SHK

Dimension drawing showing the principal and connection dimensions for type 24 for disc atomizers. Filed under General. Document number 24-PDA1-4G-E. PDF document in English.

Til: EN · English content

PDF yuklab olish Narx soʻrashHujjat raqami 24-PDA1-4G-E

Koʻrib chiqish

PDF yuklab olish Koʻrib chiqish

Ushbu hujjatga havola
Hujjat raqami	24-PDA1-4G-E
Til	EN
Tur boʻyicha filtrlash	Chizma
Sahifalar	0
Fayl hajmi	19 KB

Tegishli mahsulotlar

Diskli forsunkaprimary
Qaytarma forsunkarelated
