3 plate spillback atomizer 32 without needle

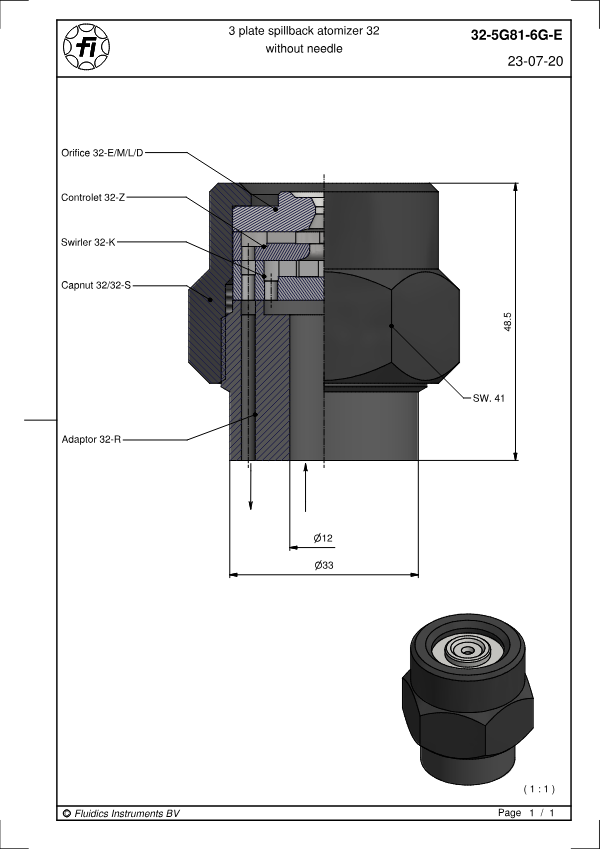

Dimension drawing showing the principal and connection dimensions for type 32 for spill-back atomizers. Filed under Type 32. Document number 32-5G81-6G-E. PDF document in English.
По языку
Библиотека документов · EN
Поиск документов
Результаты

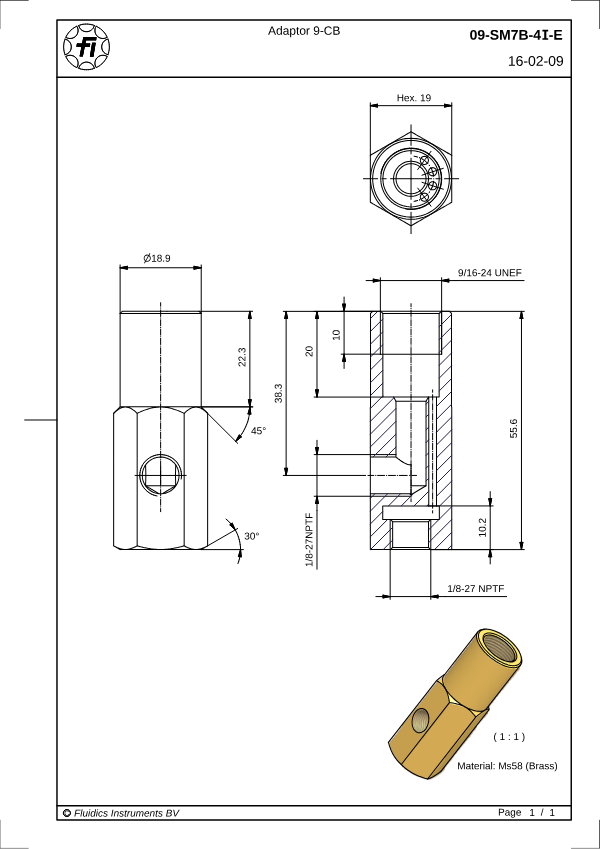

Adaptor 9-CB
Dimension drawing showing the principal and connection dimensions for type 9 for simplex atomizers. Filed under General. Document number 09-SM7B-4I-E. PDF document in English.

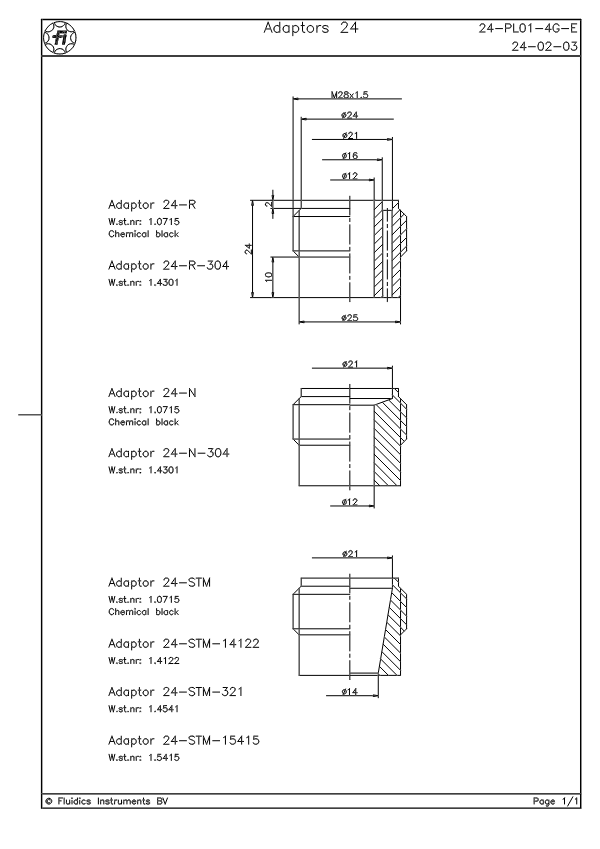

Adaptors 24
Dimension drawing showing the principal and connection dimensions for type 24 for disc atomizers. Filed under General. Document number 24-PL01-4G-E. PDF document in English.
Adaptors 32

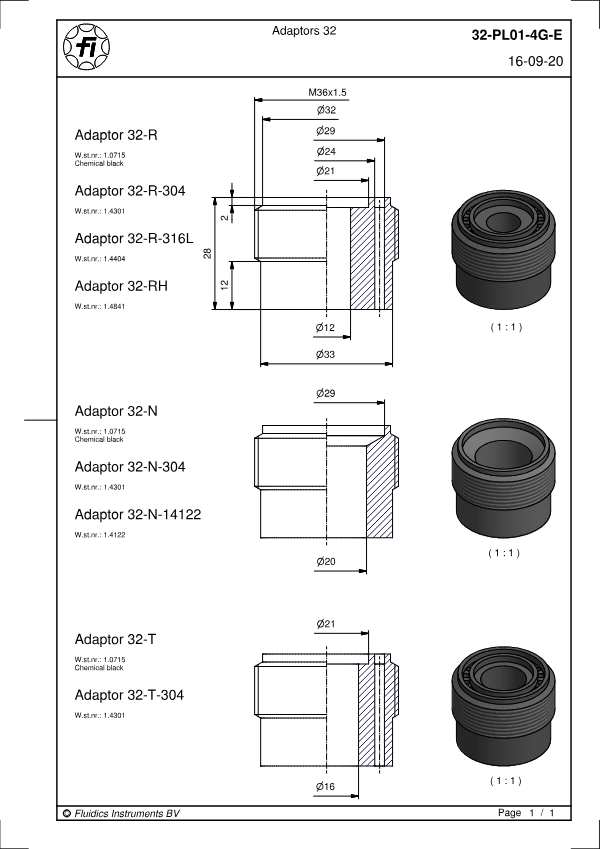

Dimension drawing showing the principal and connection dimensions for type 32 for disc atomizers. Filed under General. Document number 32-PL01-4G-E. PDF document in English.

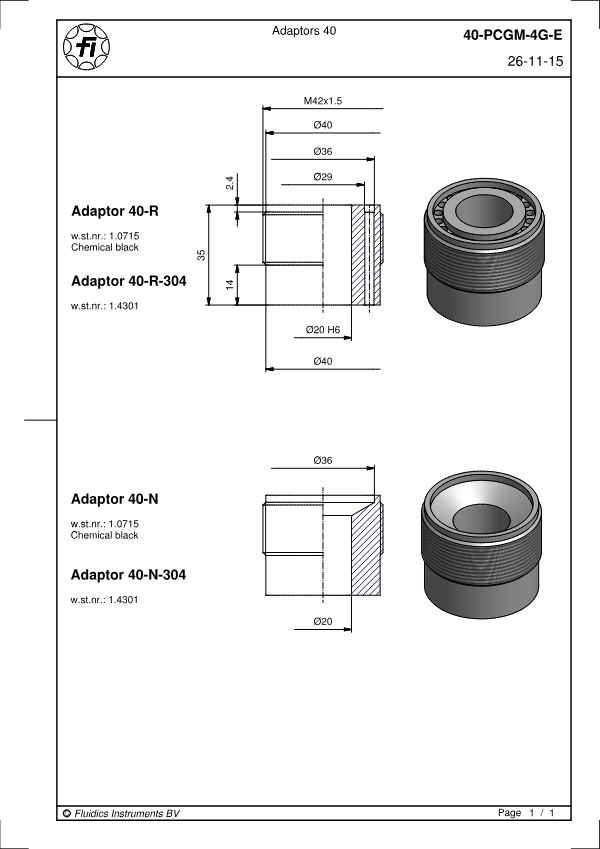

Adaptors 40
Dimension drawing showing the principal and connection dimensions for type 40 for disc atomizers. Filed under General. Document number 40-PCGM-4G-E. PDF document in English.
Air/steam atomizer 12- AG.. / AH.. -A°-…-5/6 Fuel density 860 kg/m³ Fuel viscosity 5 mm²/s OUTPUT CHARACTERISTIC
Output characteristic for type 12 for air/steam atomizers used to size the duty point for the application. Filed under Output characteristics. Document number 12-HU01-DG-E. PDF document in English.

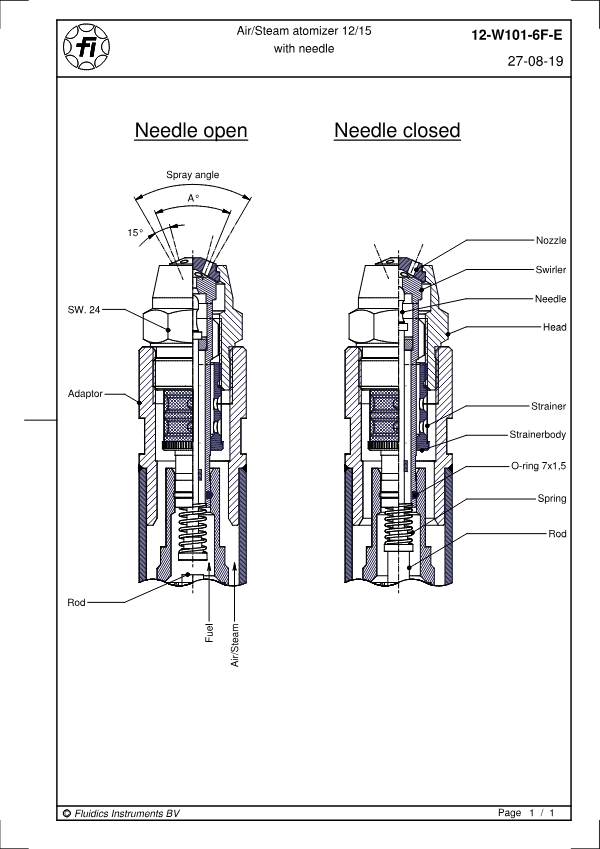

Air/Steam atomizer 12/15 with needle
Technical datasheet for type 12 for air/steam atomizers listing the available sizes, materials and connection dimensions. Filed under General. Document number 12-W101-6F-E. PDF document in English.

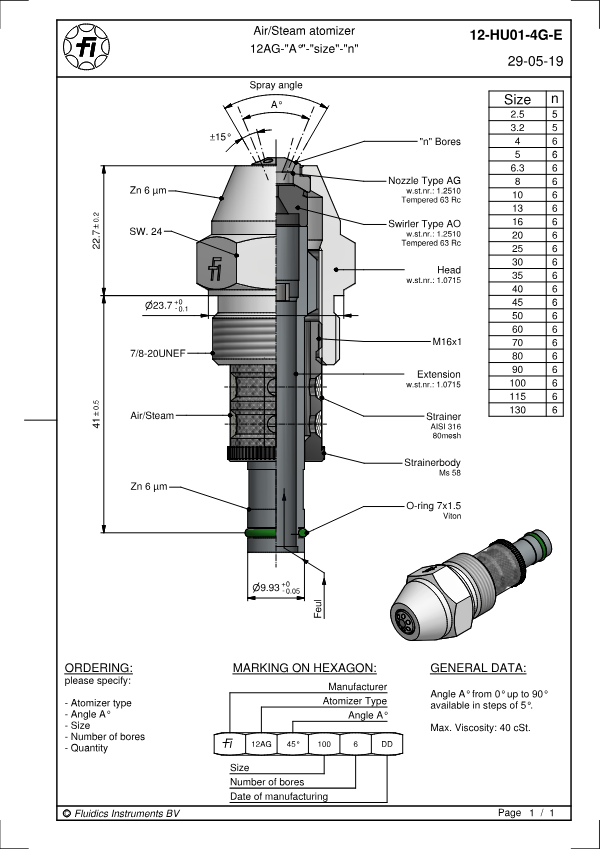

Air/Steam atomizer 12AG-“
Dimension drawing showing the principal and connection dimensions for type 12 for air/steam atomizers. Filed under Type 12. Document number 12-HU01-4G-E. PDF document in English.
Air/Steam atomizer 12AG/15AG

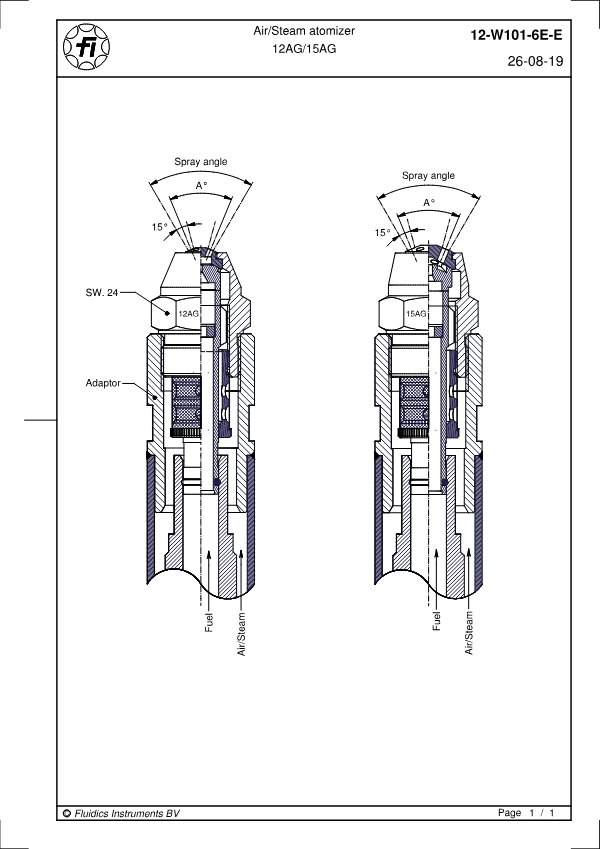

Technical datasheet for type 12 for air/steam atomizers listing the available sizes, materials and connection dimensions. Filed under Type 12. Document number 12-W101-6E-E. PDF document in English.

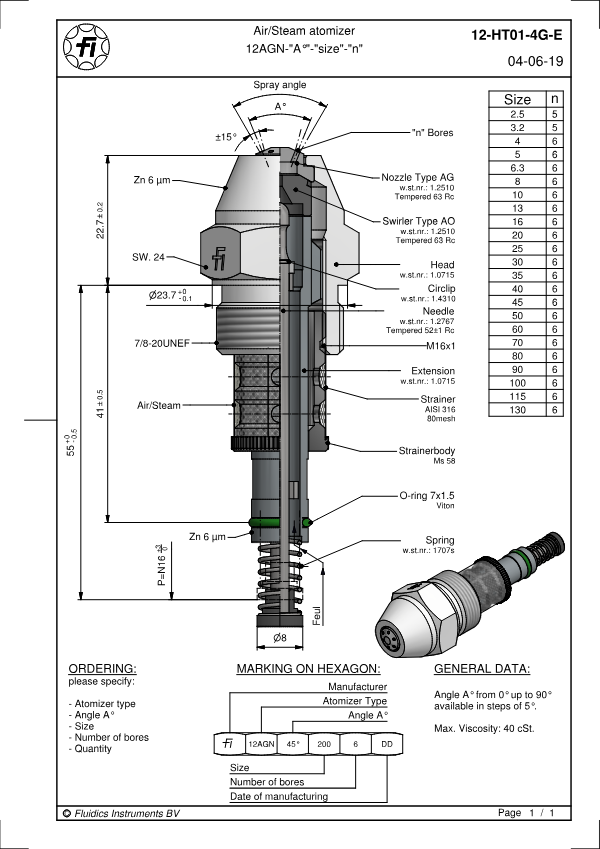

Air/Steam atomizer 12AGN-“
Dimension drawing showing the principal and connection dimensions for type 12 for air/steam atomizers. Filed under General. Document number 12-HT01-4G-E. PDF document in English.
Air/steam atomizer 15- AG.. / AI.. / AH.. / AV.. -A°-…-6 Fuel density 860 kg/m³ Fuel viscosity 5 mm²/s OUTPUT CHARACTERISTIC

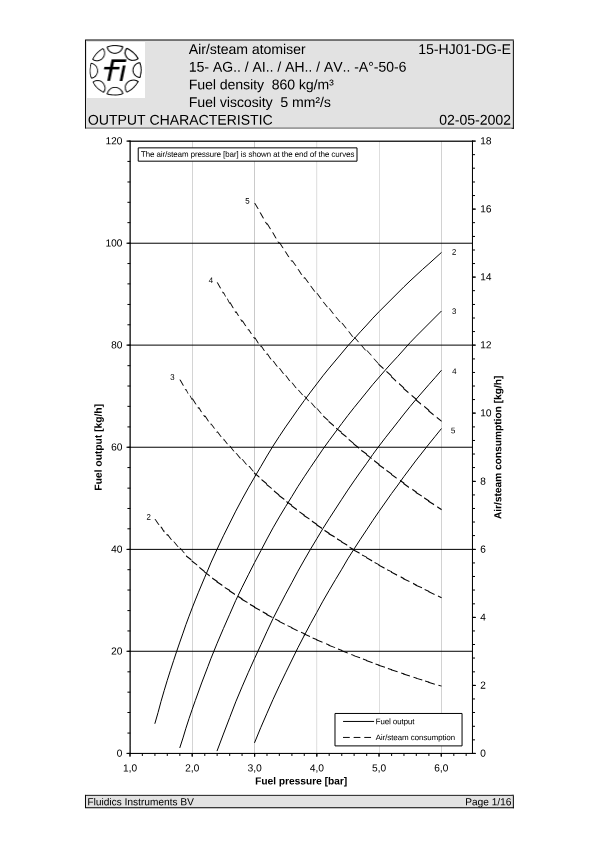

Output characteristic for type 15 for air/steam atomizers used to size the duty point for the application. Filed under Output characteristics. Document number 15-HJ01-DG-E. PDF document in English.
Air/Steam atomizer 15AG-“

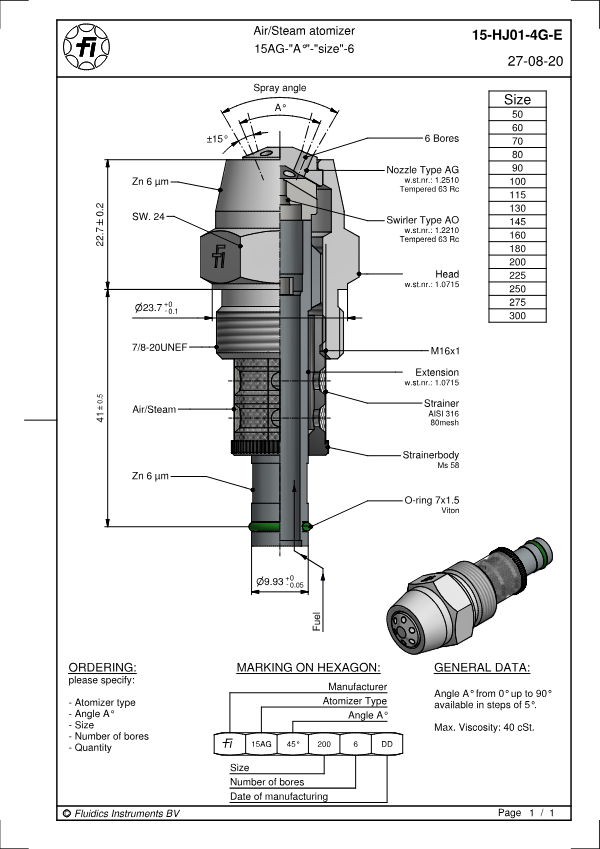

Dimension drawing showing the principal and connection dimensions for type 15 for air/steam atomizers. Filed under General. Document number 15-HJ01-4G-E. PDF document in English.
Air/Steam atomizer 15AGN-“

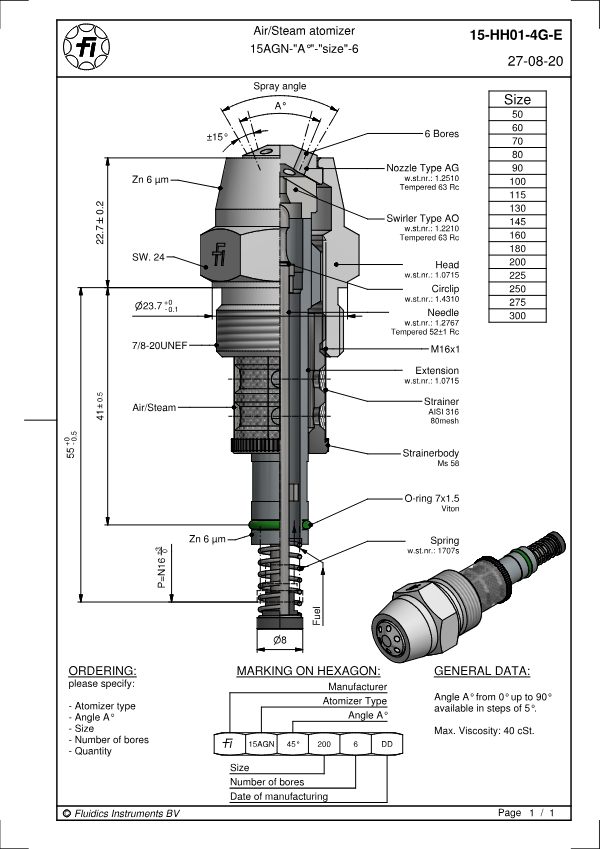

Dimension drawing showing the principal and connection dimensions for type 15 for air/steam atomizers. Filed under General. Document number 15-HH01-4G-E. PDF document in English.
Air/steam atomizer 24- AG.. -A°-…-6 Fuel density 860 kg/m³ Fuel viscosity 5 mm²/s OUTPUT CHARACTERISTIC
Output characteristic for type 24 for air/steam atomizers used to size the duty point for the application. Filed under Output characteristics. Document number 24-5H01-DG-E. PDF document in English.

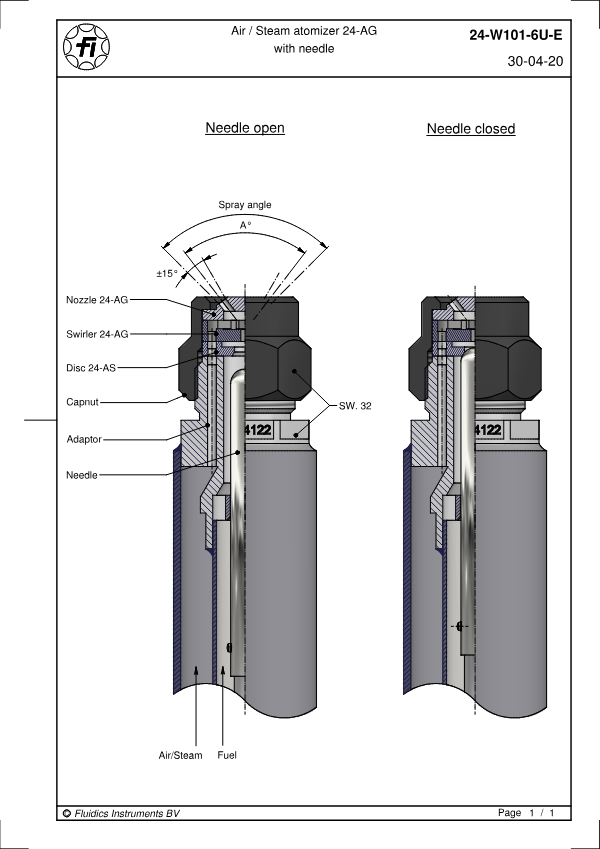

Air/Steam atomizer 24-AG with needle
Technical datasheet for type 24 for air/steam atomizers listing the available sizes, materials and connection dimensions. Filed under Type 24. Document number 24-W101-6U-E. PDF document in English.
Air/Steam atomizer 24-AG without needle

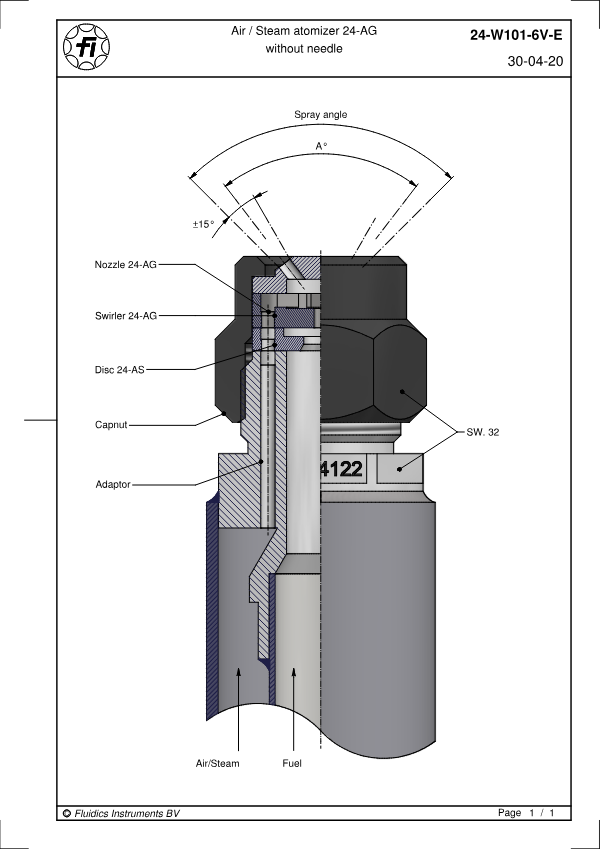

Technical datasheet for type 24 for air/steam atomizers listing the available sizes, materials and connection dimensions. Filed under Type 24. Document number 24-W101-6V-E. PDF document in English.

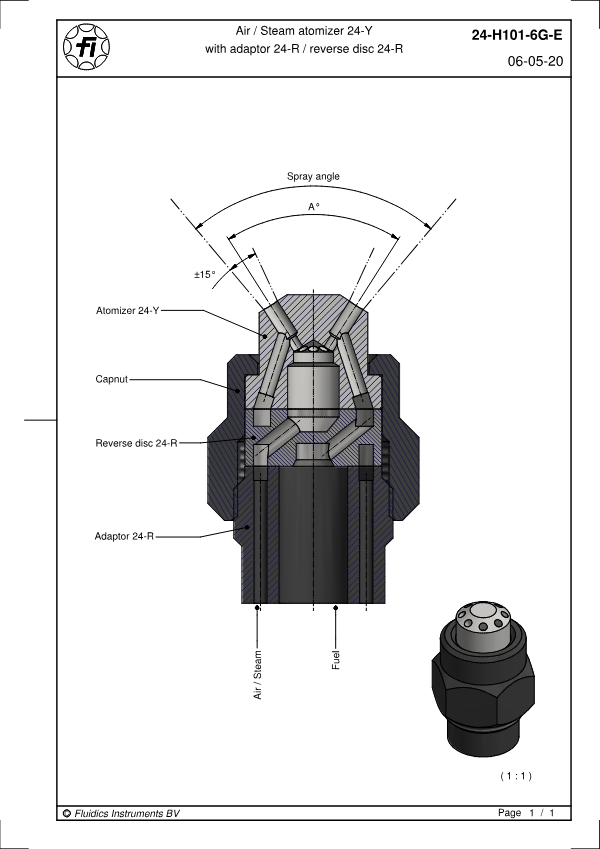

Air/Steam atomizer 24-Y with adaptor 24-R / reverse disc 24-R
Technical datasheet for type 24 for disc atomizers listing the available sizes, materials and connection dimensions. Filed under Type 24. Document number 24-H101-6G-E. PDF document in English.

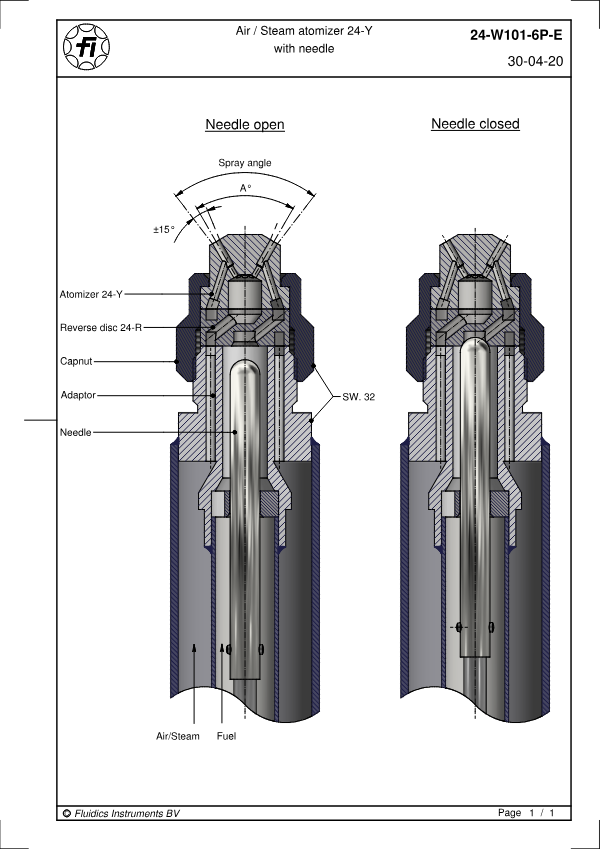

Air/steam atomizer 24-Y with needle
Technical datasheet for type 24 for air/steam atomizers listing the available sizes, materials and connection dimensions. Filed under Type 24. Document number 24-W101-6P-E. PDF document in English.

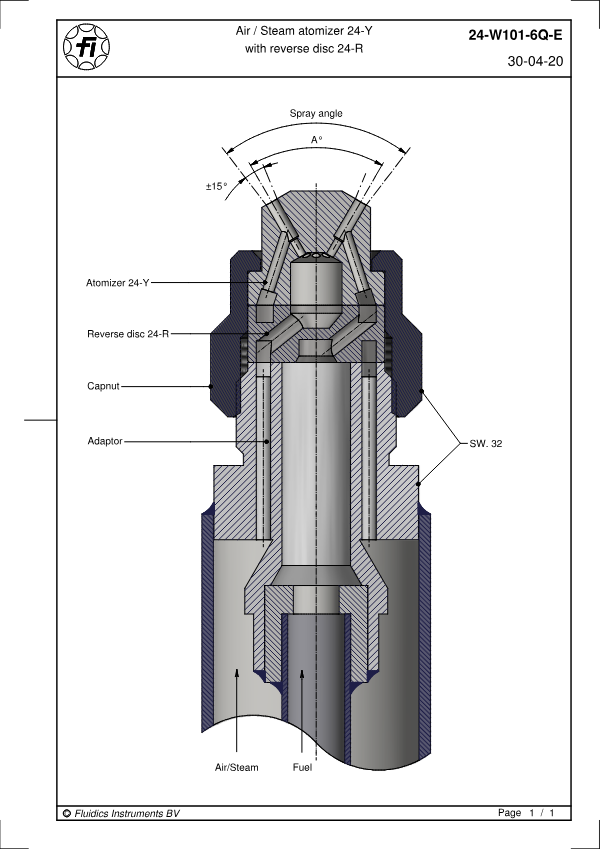

Air/steam atomizer 24-Y with reverse disc 24-R
Technical datasheet for type 24 for disc atomizers listing the available sizes, materials and connection dimensions. Filed under Type 24. Document number 24-W101-6Q-E. PDF document in English.
Air/steam atomizer 24-Y with reverse disc 24-R OUTPUT CHARACTERISTIC

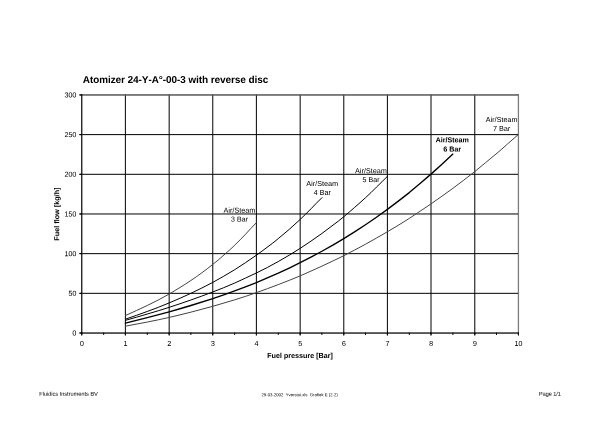

Output characteristic for type 24 for disc atomizers used to size the duty point for the application. Filed under Output characteristics. PDF document in English.
